G400 Mounting Solutions

This guide provides detailed instructions on how to install the VergeSense G400 gateway. The target audience are individuals responsible for physical installation of a VergeSense sensor network.

Each sensor comes with custom brackets which provide flexible installation on drop ceiling, rod drops, drywall, decorative ceiling, and junction boxes.

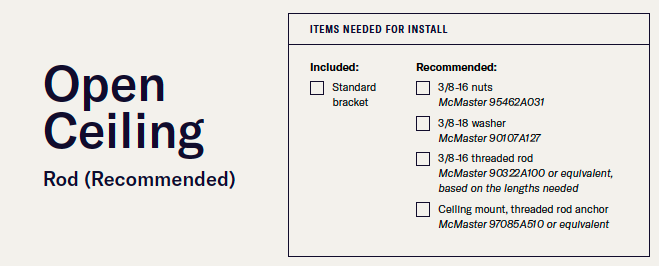

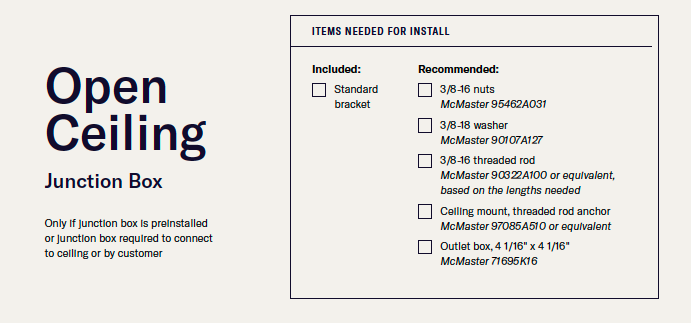

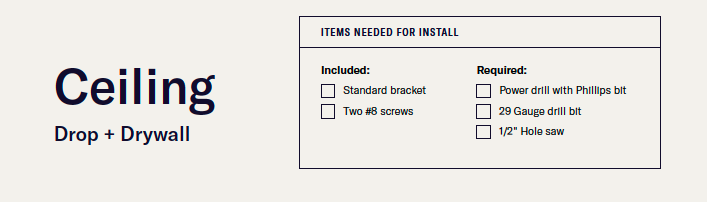

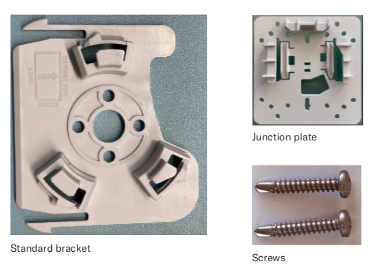

The standard bracket mounts on drop ceiling or any diameter rod drop. For custom installs, the standard bracket attaches to either junction plate or wall mount bracket, which provides lower cost and flexibility. Each individual box comes with items shown below.
