Space Groups

Space Groups can be utilized like tags, assigning attributes (one or many) to any Space. Space Groups can be created in the Space Groups tab in Settings by Admins.

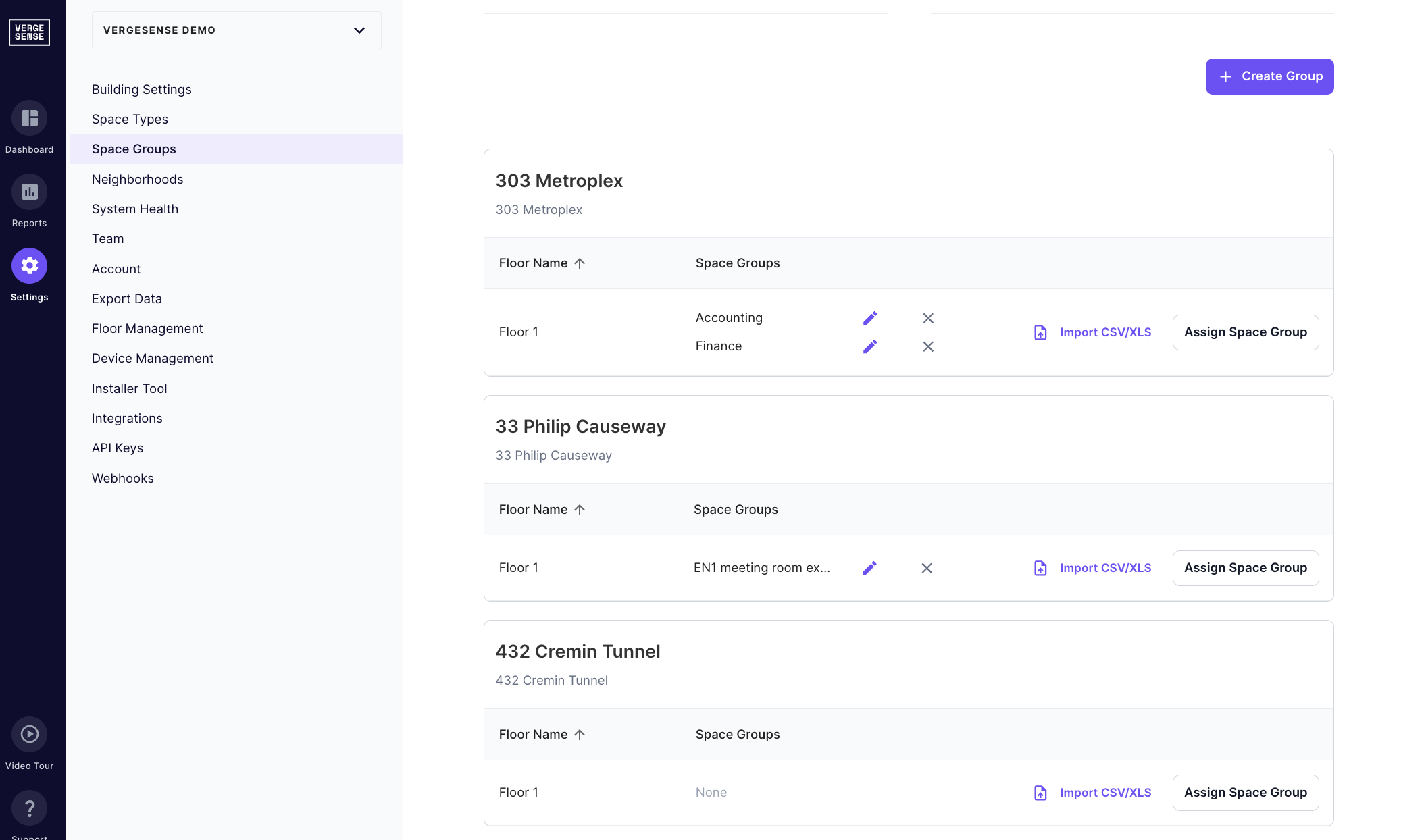

Screenshot 2024-04-11 at 10.24.18 AM.png

Creating Space Groups

Create any number of Space Groups by clicking "Create Group" and select the color that will be used to identify the group on Usage Maps.

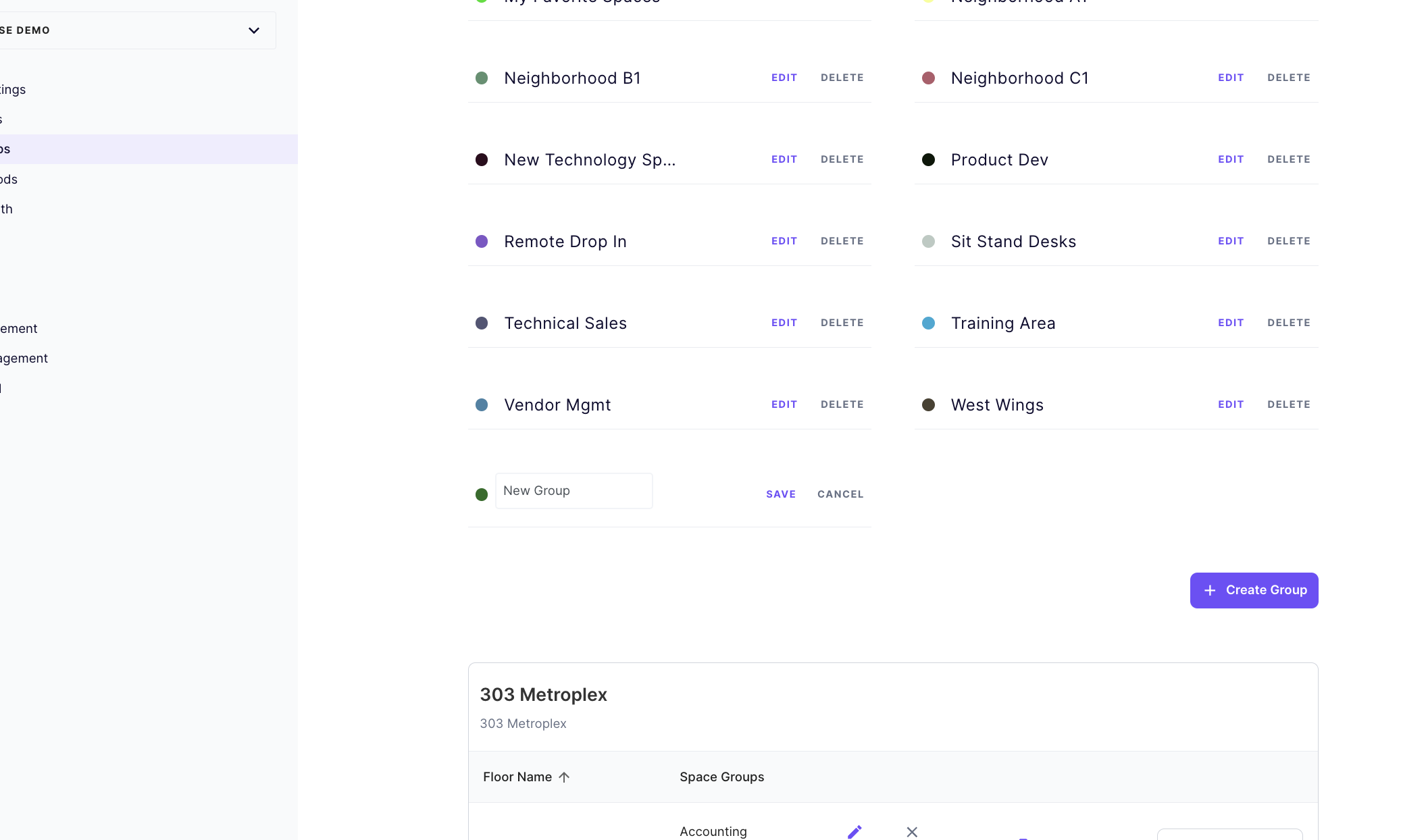

Screenshot 2024-04-11 at 10.35.02 AM.png

Updating and Assigning Space Groups

Update and Assign Space Groups manually, by clicking "Assign Space Groups" and selecting the Space Group from the drop down and spaces either by clicking on the Floor Plan or by searching and selecting individual spaces from the list.

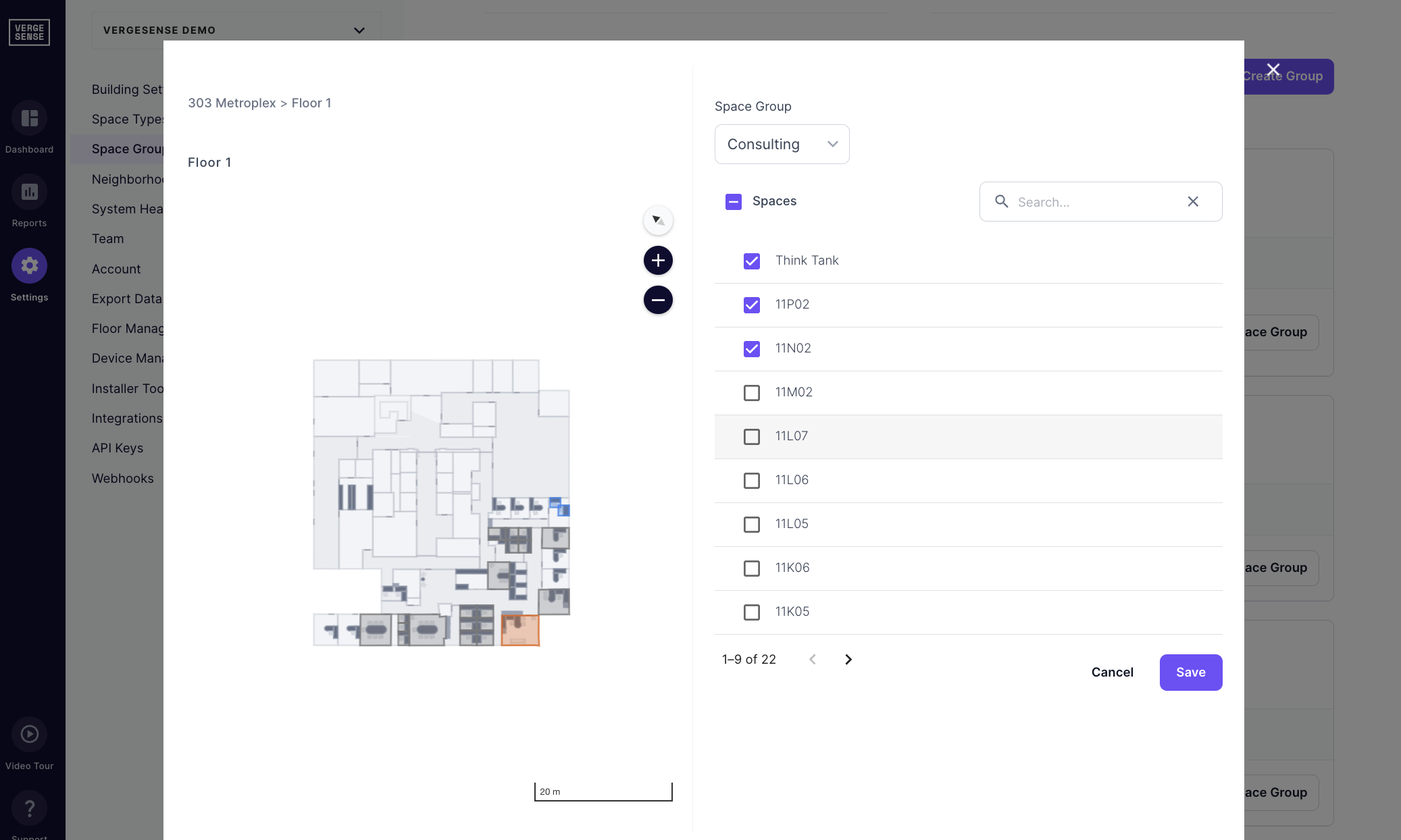

Screenshot 2024-04-11 at 10.25.37 AM.png

Space Groups may also be updated in bulk by selecting Import CSV/XLS. The required column headers are "Space Ref ID" and "Group Name". Multiple file formats are accepted, but column headers are required.

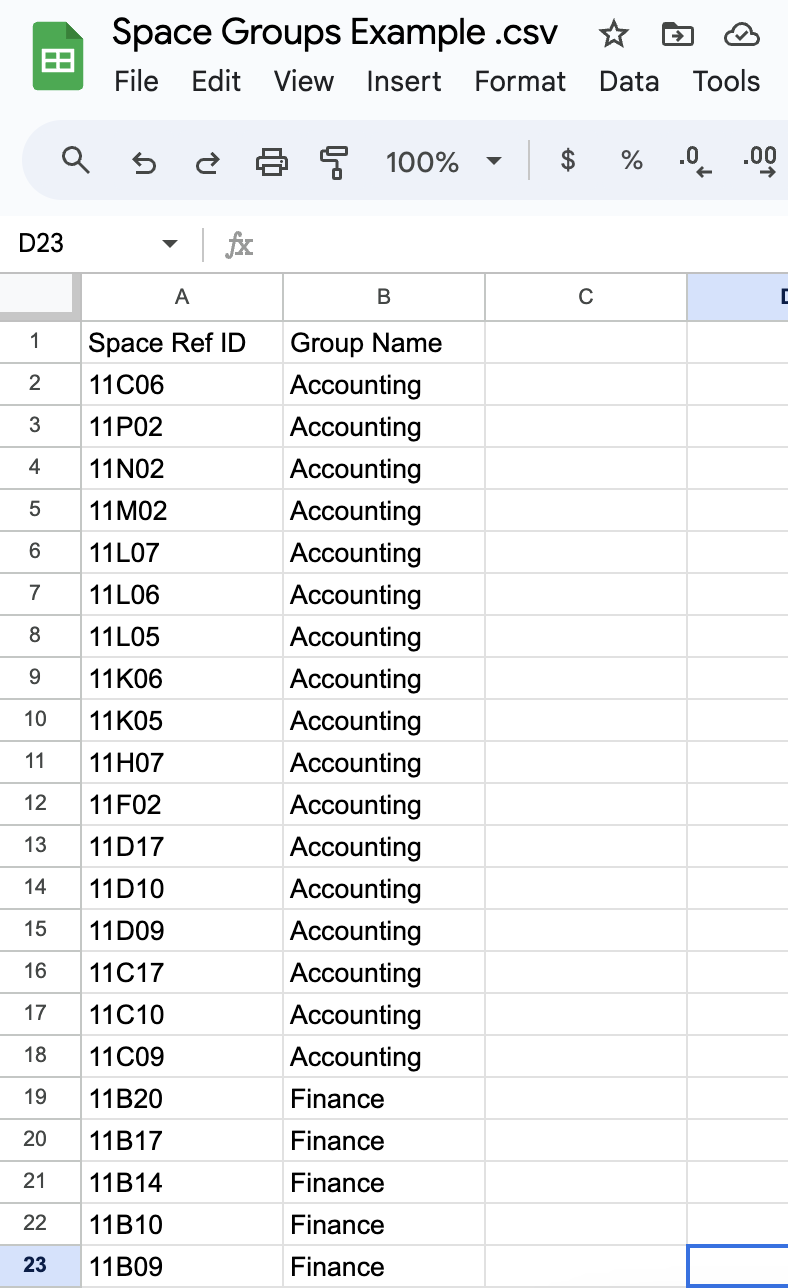

Screenshot 2024-04-11 at 10.23.06 AM.png

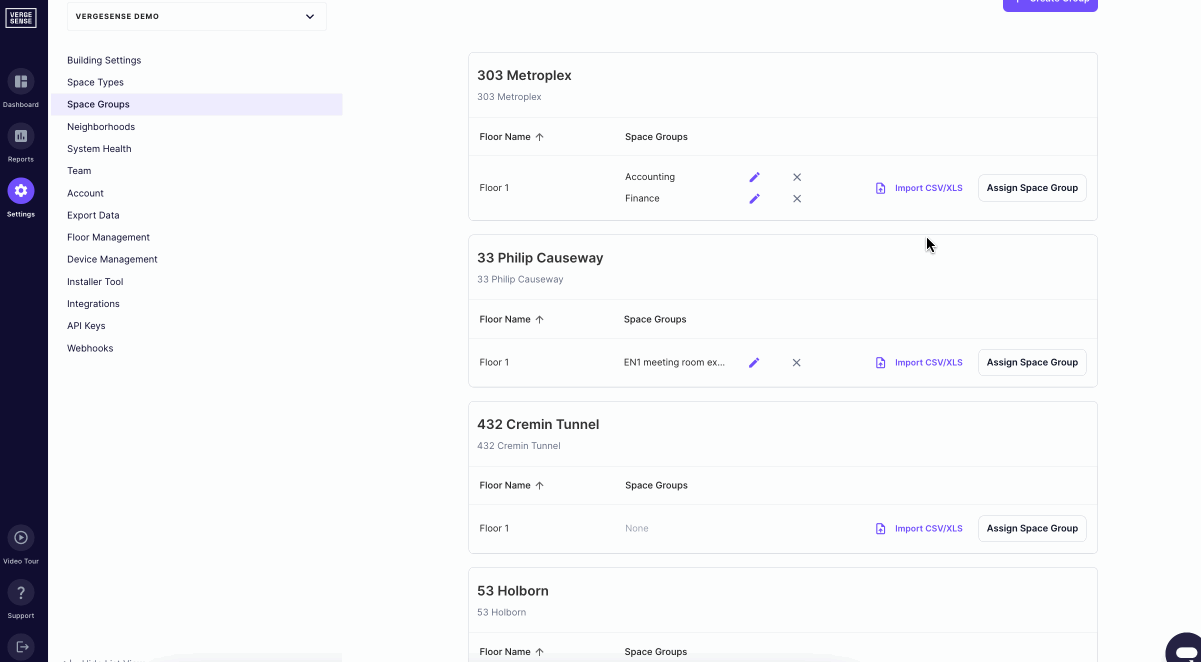

Once uploaded, you will select the appropriate columns for mapping and are able to confirm the data is correct before proceeding. Any Space Ref ID that does not exist in VergeSense will be identified in "# of mismatched spaces".


Viewing Space Groups Data

View and analyze Space Groups from the Platform Portfolio page or utilize Space Groups as a filter in reports. Space Groups are also available in Export Data tables.


Analytics Basics

VergeSense Reports
