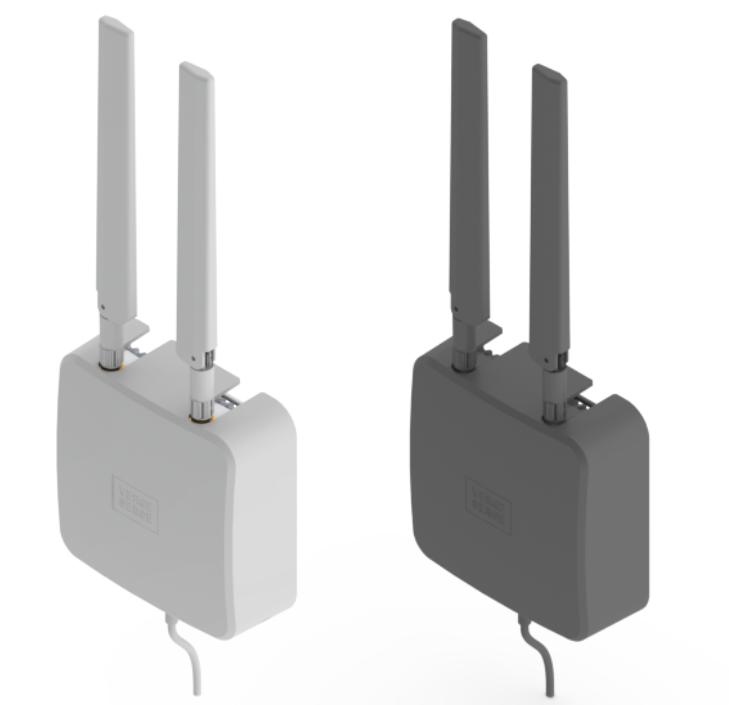

The VergeSense G400-C Gateway is a device that communicates with the local network of VergeSense sensors to aggregate local occupancy data.
In a typical office environment, we suggest using one gateway per 50 devices. The sensors form a wireless mesh network with the gateway being the transfer point from the mesh network to the cloud. The maximum distance from the gateway to the nearest sensor in the wireless mesh should not exceed 40 feet.
Ideally, several sensors in the wireless mesh will be in close proximity to the gateway to ensure a reliable path back to the gateway across the wireless sensor mesh.
Gateway Location
Using the Installer Tool, find the gateway location on the map.
Power Requirements
Power can be delivered through power over ethernet or by plugging the provided AC/DC Power to USB-C Adapter into a wall outlet.
Confirming Connectivity
Power the gateway by inserting the ethernet cable or by plugging the provided AC/DC Power to USB-C Adapter into a wall outlet. The gateway will automatically power on.
The VergeSense wired gateway contains an LED next to the soft reset button on the side of the device. The LED is intended to provide an indication of the gateway's status during initialization. During normal operation, the LED will be turned off and the gateway's status should be visible in the VergeSense dashboards. During initialization, the LED should exhibit the following behavior:
| Color | Pattern | State |
| Cycle through red, green and blue | Approximately 0.5 seconds on each colour | Initial power and system initialization (approximately 30 seconds) |
| Green | Solid on | System Initialised |
| Green | Flashing - approximately 0.5 seconds on/off cadence | Searching for Network address |
| Blue | Flashing - approximately 0.5 seconds on/off cadence | Connecting to VergeSense Cloud |
| Off | Off | Normal operation |
Mounting
Recommended mounting height is above 8' (2.4m).
The gateway communicates to the sensors in the wireless mesh using a 2.4GHz radio signal. The radio signal can be blocked by humans, panels of glass, metal framing, computer monitors and any combination of metal, glass or water. For optimum radio performance the gateway should be in line of sight with several sensors, and above human head height.
If a suspended ceiling is employed at the place of installation, for aesthetic reasons it may be viable to install the gateway above the suspended ceiling tiles. As long as the ceiling tiles are not constructed out of metal, glass or contain liquids.
- Wall & Ceiling Mount: The gateway kit comes with a mounting bracket that allows for the gateway to be mounted onto a wall or ceiling
- Special consideration should be given to any metal near the mounting area. Mount away from any metal surfaces such as metal ceiling tiles, shelves, cabinets, HVAC ducts, and other obstacles. For example, at sites with metal ceiling tiles, gateways should be mounted high on the wall instead of the metal ceiling.
- For optimal range, it is best to install a gateway facing towards the coverage area. Maintain a clear line of sight or minimize obstacles to desired coverage areas.
Refer to the following guide for more information: G400-C Mounting Solutions
Commissioning the Gateway
Follow the below steps to commission the gateway in the VergeSense platform
- Before the Gateway is permanently installed, look at the side and record the unit Serial Number in the Installer Tool.
- Once connected, confirm the timestamp is recent
- Select Publish
The green gateway icon indicates a successful installation. The wireless network is now set up and VergeSense sensors can start communicating to the gateway.
Proceed to Installing a Wireless (L302) Sensor to continue the installation.
